PIEZOMETERS
-
![]()
example@mail.com
Button
M-600 Piezometer
For direct push-in penetration use without pre-drilling
• Quick installation in soft and loose soils
• Short response time
• Accuracy better than ± 0.5% FS
• Pressure range 2 to 30 bar
-
![]()
example@mail.com
Button
M-610 Piezometer
Designed for direct mounting
• Suitable for use in dams, landfills, environmental wells or similar
• Housing of stainless steel, other materials such as titanium are available on request
• Measuring range 2 to 30 bar.
-
![]()
example@mail.com
Button
M-206 Hydraulic Piezometer
The piezometer can be pressed down without pre-drilling, normally until approximately 30 m depth. Intended for Ø32 mm extension tube. Adapters to 1″ water pipe can be delivered.
Easy to install. Simple and robust design. For measurement of groundwater level and pore pressure. Push-inn penetration without pre-drilling. Supplied with bronze filter. Read by using a specially designed water-level gauge.
-
![]()
example@mail.com
Button
Vibrating Wire Piezometers
Vibrating Wire Piezometers allow for measurements of pore water pressure under the most adverse conditions.
-
![]()
example@mail.com
Button
Multi-Point Piezometer String
Multi-point Piezometer Strings allow for multiple Vibrating Wire Piezometers to be connected on a single cable. This facilitates the installation of fully grouted multiple piezometers. The single cable prevents vertical void channels.
-
![]()
example@mail.com
Button

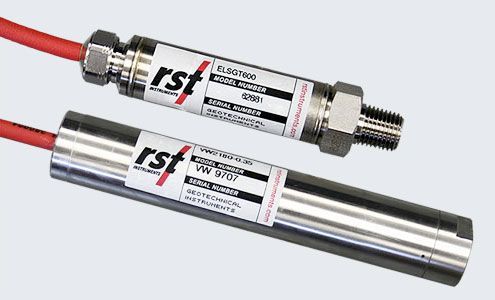

Strain Gauge and Vibrating Wire Pressure Transducers
Strain Gauge and Vibrating Wire Pressure Transducers are used for uplift measurement in the foundation of concrete dams, overflow settlement measurement in earthfill and rockfill dams, and all other applications where a rugged and reliable pressure transducer is required for measuring fluid pressure in closed circuits.
-
![]()
example@mail.com
Button

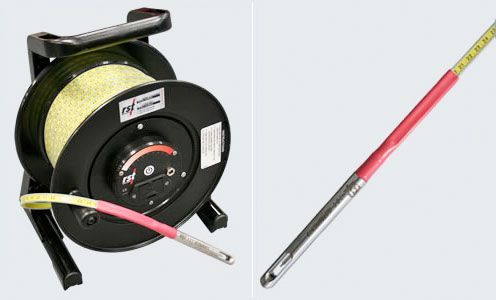

Water Level Meter
RST Water Level Meters are designed to measure the elevation of groundwater in boreholes, standpipes and wells.
-
![]()
example@mail.com
Button
Pneumatic Piezometers
-
![]()
example@mail.com
Button
Casagrande Standpipe Piezometer
RST’s Push-in Standpipe Piezometer is used in soft clays, organic and fine grained cohesionless soils. It is also ideal for slope stability investigation and leachate extraction. The piezometer unit is designed for extremely quick and easy field assembly.
