H-10 Field Vane Shear Apparatus
Overview

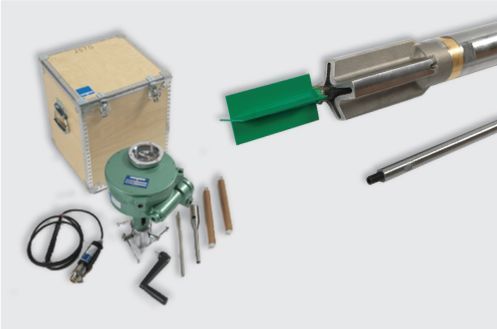

The Geonor H-10 Field Vane Shear Apparatus is a fully protected, pressure push-in, field vane instrument.
No rod-soil friction is possible due to its tube-protected rods. No need either to check the vane, nor to clean it between each shearing (clay adhering to the vane may increase its area ratio considerably).
The protection shoe of the Geonor H-10 not only protects the vane but also cleans it automatically before each measurement. The shoe is particularly useful for testing in stratified, sandy, stony and marine sediment clays
Features
- Detailed field investigation of undrained shear strength and sensitivity of soft and medium stiff clays
- From 0 to 30 meters by hand jack, even through hard layers of clay, sand or silt
- Two vane sizes. Measurement range from 0 to 60 kPa and 0 to 100 kPa
- Top-level accuracy results, can be used for the design of earth fill foundations and embankments
Specifications
- Installation: Pressure push-in, no hammering. By hand with the Geonor ground-anchored jacking system or with a hydraulic drilling rig.
- Instrument: Gear driven, accuracy of torque reading: + – 0.5% of range.
- Measurement range: From 0-60 kPa (0-6 T/m2) and 0-100 kPa (0-10 T/m2).
Click Below to Download Data Sheet
Data Sheet
